 General Purpose Motors

RANGE
LAWKIM has a wide range of motors ranging from 7 watts (0.009 HP) to 2250 watts (3 HP) in single phase designs and upto 1500 watts (2 HP) in three phase designs. LAWKIM takes keen interest and pride in developing special motors for customer should standard motor range not suffice.

STANDARDS
These motors conform to IS 996 and BS 5000 Part 11 for performance.

RATING
All standard motors are continuous rated to comply with performance standards. Special motors for cyclic or short time duties can also be offered against specific applications.

ENCLOSURES
LAWKIM offer following enclosures

  • Drip Proof (DP)
  • Totally Enclosed (TE)
  • Totally Enclosed Fan Cooled (TEFC)
  • Air Over Motors (AOM)

MOUNTINGS
Various types of mountings are available

  • Foot
  • Stator Pad
  • Flange
  • Foot cum Flange
  • Endshield Pad
  • Stud
  • Special Mounting if required


BEARING & LUBRICATION
Sleeve bearing motors are lubricated for life by using PermawickTM Lubrication system. This can give 50,000 hours of operation without lubrication at normal running. Ball Bearing motors use double shielded deep groove bearings and are life lubricated. This offers you trouble free life.

CENTRIFUGAL GEAR AND OPEN CIRCUIT SWITCH
Field proven centrifugal gear is used for trouble free operation. Open circuiting switch has sintered contact/s consisting of silver alloy and copper. These contacts have excellent antiweld properties and can safely rupture heavy current.

ROTOR / SHAFTS
 All shafts are made of ENS steel and ground to 10 micron accuracy. All shafts are given anti rust treatment. Stainless steel shafts can also be supplied if asked for.

APPLICATION ENGINEERING
With special emphasis on customer satisfaction, LAWKIM can develop a motor as per customer's application requirement.

TYPICAL APPLICATIONS

Domestic Pumps Vacuum Pumps Surgical Pumps
Wet Grinders Domestic Flour Mills Sewing Machines
Machine Tools Box Strapping Machines Floor Polishers
Compressors Pouch Making Machines Printing Presses
Sugar Cane Crushers Wood Working Machines Air Conditioners
Package Air Conditioners Washing Machines Jewellery Making Machines
Room Coolers Needle Vibrator

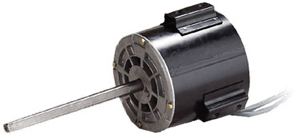

    HVAC

Motors Conforming to NEMA 42 and 48 frame specially designed for HVAC & Windows/Split room air-conditioners, condenser coolers and allied applications.

Optimized designs give low temperature rise, quiet operation and energy efficiency, hence saving power.
Expert backup provided for motor selection and qualification for specific application.
Motors can be specially designed to meet electrical and mechanical performance criteria.
Totally enclosed or open design as per customer requirement.
Die Cast precision-machined aluminum end shield for accurate alignment of shafts and bearings.
Powder-coated shells for good corrosion resistance.
Motors either with resilient base or with vibration isolation rubber rings as per customer requirements.
Manufactured in state-of-the-art machines to have consistency.
Permanent lubrication for service life of 50000hrs of continuous operation.
Use of Slingers to avoid loss of lubrication oil.
Motors are suitable for extreme operating conditions of low temperature, high humidity, dusty atmosphere & high ambient temperatures.
